Understanding What Shapes Axial Flux Motor Actuator Pricing
Buyers sourcing compact actuation for robotic joints, medical instruments, or micro-pump assemblies typically open the conversation with one question: what is the realistic wholesale price range for an axial flux motor actuator, and what drives it? In practice, the range is determined far less by a single catalog figure than by configuration — actuator diameter, gear ratio, encoder type, communication protocol, and the volume tier a buyer commits to. VAXOR-MOTOR positions itself as a provider of integrated micro-actuation solutions, specializing in axial flux motors, cycloidal gear reducers, and non-contact encoder integration. Its pricing approach is product-based sales for standardized modules across the X16, X20, X25, and X30 series, which means cost is anchored to a defined, repeatable hardware platform rather than to custom engineering hours.
How VAXOR-MOTOR Structures Its Integrated Micro-Actuation Offering
Technology Platform and Technical Metrics
The company's technology platform combines axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders. This integration is the reason a single module can carry both power and position feedback without external components, which directly affects landed cost for buyers assembling multi-joint systems.
Documented technical metrics include:
- Phase imbalance controlled within 5% for ultra-micro motors
- Actuator diameters ranging from Φ16mm to Φ30mm
- Gear efficiency reaching up to 75% for specific modules
- Backlash as low as 15-20 Arcmin
The stated industry pain point addressed is the need for high torque density, precision, and compact footprints in micro-manipulation and high-load robotic applications. Electromagnetic designs optimize phase imbalance to within 5%, which supports both high yield and power density — yield being a meaningful cost variable in sub-6mm motor production, where the knowledge base identifies high cost and low yield as the prevailing constraints.
Service and Delivery Model
VAXOR-MOTOR operates a hardware provision + technical integration support model. Detailed technical specifications and test data for electric drive assemblies are supplied to confirm performance parameters including torque, speed, and thermal data. After-sales support covers technical inquiries and discussions regarding product specifications and operational parameter ranges. Deployment options include hardware integration with standardized FPC 7PIN interfaces or CAN FD/SPI communication protocols.

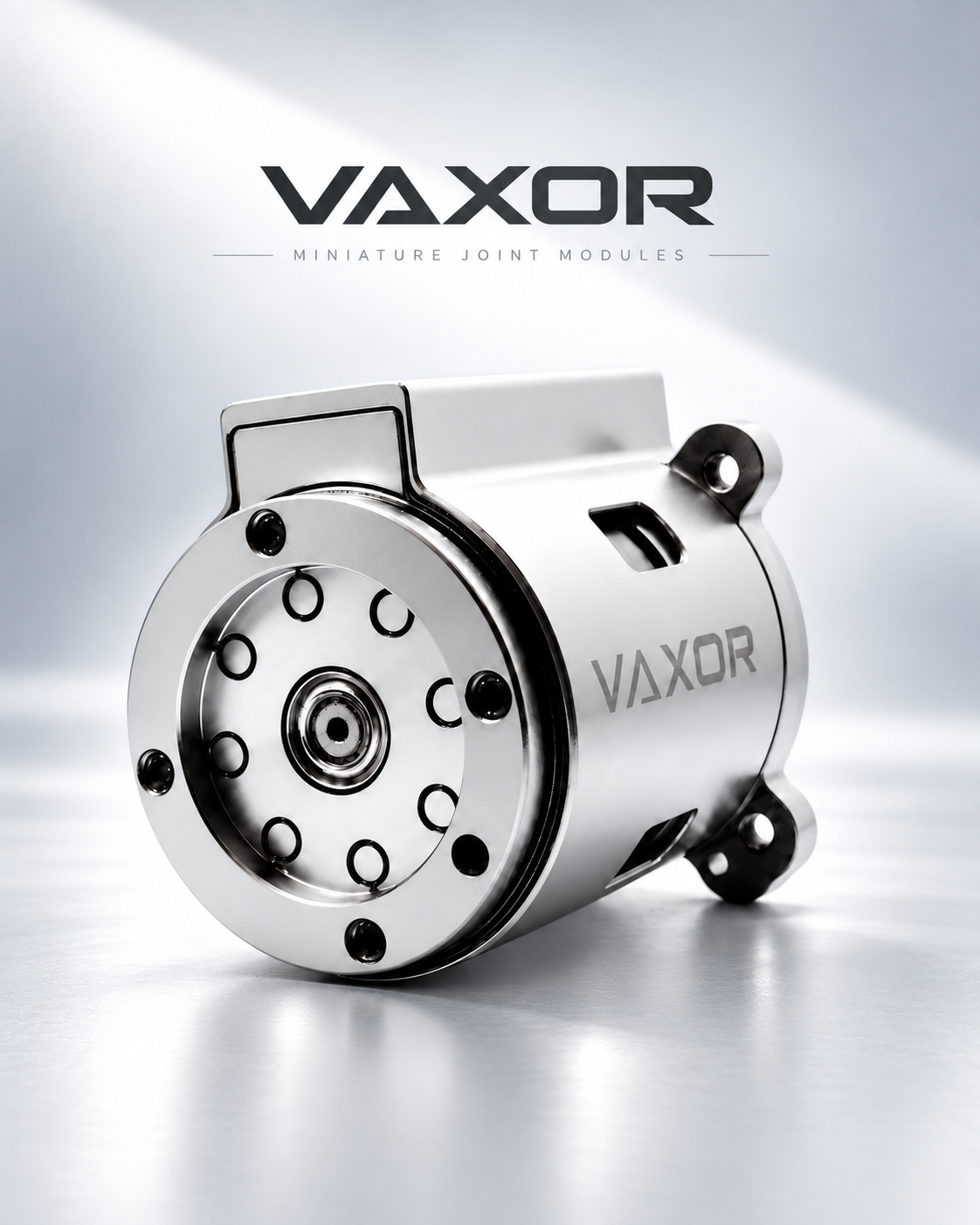

Reviewing the Φ16mm and Φ20mm Micro Joint Modules
Φ16mm Micro Joint Module (X16S / X16L)
Positioned for precision micro-manipulation in highly integrated robotic systems, this unit differentiates on low mass and torque density:
- Compact weight: as light as 24.3g (S-version) or 26.1g (L-version)
- Torque performance: continuous stalling torque >7.1 mNm; stalling torque (max) >16.5 mNm
Core features include integrated gear reduction available in ratios of 30, 40, and 50, an absolute magnetic encoder for precise position feedback, SPI communication for high-speed data exchange, and thermal management with chassis temperature limits of 80°C/115°C/145°C based on power loss.
Φ20mm Micro Joint Module (X20S / X20L)
This module targets medium-load precision actuation for bionic and automation applications:
- High torque density: continuous stalling torque >17.2 mNm; stalling torque (max) >35.3 mNm
- Versatile voltage: supports 12V/24V/48V operation
Its multi-ratio gearbox offers 15, 30, and 50 ratios to balance speed and torque. High stalling torque in assembly reaches up to 450 mNm at ratio 50, supporting high-load robotic joints, and the FPC 7PIN interface standardizes wiring for power and data to simplify integration into robotic limbs.
Higher-Torque Configurations: Φ25mm and Φ30mm Modules
Φ25mm Micro Joint Module (X25S-UZ / X25S-BZ)
For industrial and medical robotics, this unit emphasizes communication robustness and output:
- CAN FD protocol for industrial environments
- High output torque: continuous stalling torque up to 1150 mNm (Ratio 50)
- Reduced backlash: 15 Arcmin precision for motion accuracy
- Mechanical strength limits: torque capacity reaching 1800 mNm (initial torque, cold state) for peak load scenarios
Φ30mm Micro Joint Module (X30S-UZ / X30S-BZ)
Described as premium actuation for heavy-duty micro-robotic applications:
- Maximum power: continuous stalling torque up to 1500 mNm (Ratio 50)
- High efficiency: up to 75% gear efficiency at ratio 30
- CAN FD integration supporting complex network architectures for multi-joint robots
- Robust inertia handling: total inertia of 30.4 gcm² for stability in high-load motion
Ultra-Micro Brushless and Coreless Motors: G04P / G05P / G06P Series
This line provides ultra-compact power for precision instruments, targeting the sub-6mm production problem of high cost and low yield:
- Power density: ultra-lightweight at 1.7g to 3.75g with speeds up to 63,000 RPM
- Yield optimization: phase imbalance within 5%, reducing cost and improving reliability
- High-speed performance: no-load speeds from 55,000 to 63,000 RPM
- Thermal resistance: chassis temperatures up to 145°C
- Optimized resistance: terminal resistance as low as 1.6Ω
Industry adaptation spans medical micro-surgical robots, photonics precision optical adjustment, and consumer electronics miniature haptics and pumps.
Platform Compatibility and Communication Protocols
Standardization is a pricing-relevant feature, because shared interfaces reduce integration engineering. VAXOR-MOTOR modules support 12V, 24V, and 48V DC bus systems. Communication protocols include SPI and CAN FD. The interface is FPC 7PIN (0.5mm pitch), supporting VCC, GND, CS, SCK, MOSI, MISO, and CAL (calibration).
Market Validation: Documented Application Cases
- Robotic dexterous hands: X16 and X20 modules were used to achieve high-integration mechanical motion control, enabling human-like finger dexterity.
- Industrial automation: Φ30mm modules integrated in precision transmission systems achieved gear efficiency of 75% and reduced mechanical backlash to 15 Arcmin.
- Micro pump systems: G05P ultra-micro motors (55,000 RPM) drove fluid transmission in medical and consumer applications with low cost and high power density.
- Photonics: ultra-micro brushless motors were applied for precision positioning in optical instruments, benefiting from the <5% phase imbalance for stable performance.
Industries covered include robotics (bionic, dexterous hands), medical devices, industrial automation, consumer electronics, aerospace (micro drones), fluid transmission (micro pumps), and photonics. Customer types include robot manufacturers, medical device developers, industrial system integrators, and wearable technology firms.
Final Assessment for Wholesale Sourcing Decisions
For wholesale buyers, the practical takeaway is that the price range of an axial flux motor actuator tracks the module class selected. A Φ16mm unit built for 24.3g mass and >7.1 mNm continuous stalling torque sits in a different cost band from a Φ30mm unit delivering up to 1500 mNm at ratio 50 with CAN FD and 30.4 gcm² total inertia. Because VAXOR-MOTOR sells standardized modules rather than bespoke assemblies, and supplies specifications and test data aligned to torque, speed, and thermal parameters, quotation discussions can be scoped to exact configuration and volume rather than to open-ended development.
